首页 > 产品中心 > Purifying equipment series >
|
|
|
|
| |
Air Shower Room Series |
|

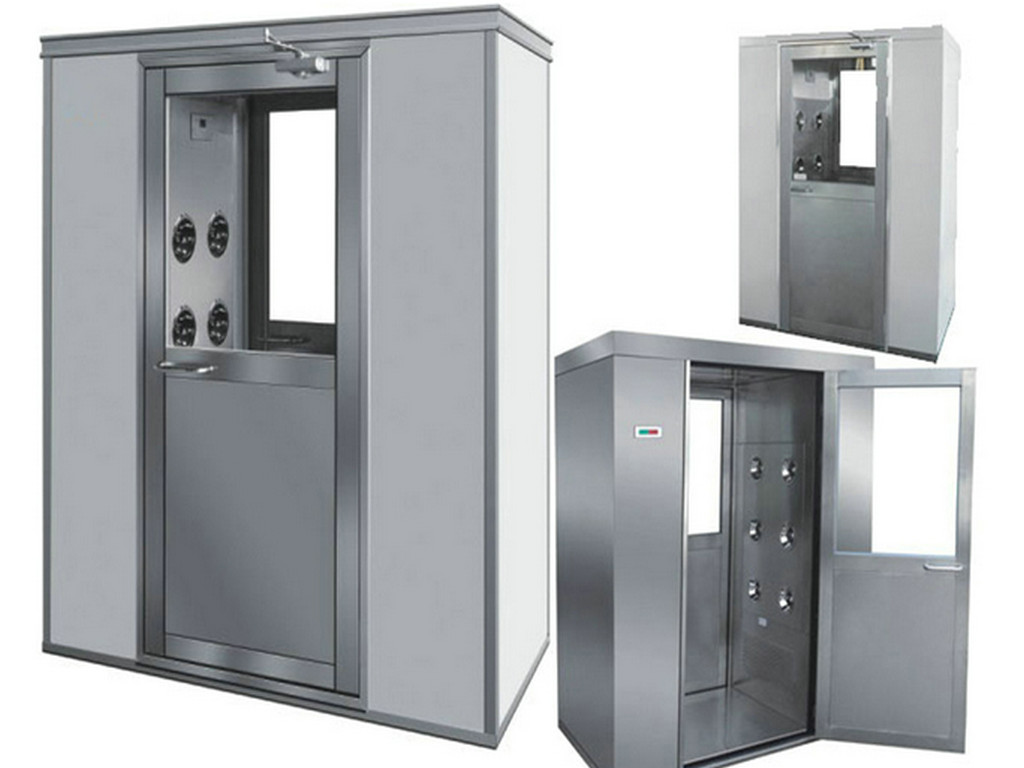

AirshowerElectric curtain Electric curtains electric curtain rail material into three main categories:
1 color plate air shower
2 steel air shower
3 stainless steel air shower
Air shower types are divided into three categories
1 person shower
2 Cargo shower
3-channel air shower
|
|
|
|
FLS-1AType |
FLS-1CType |
FLS-2CType |
|
Cargo shower |
Channel Air Shower |
|
Number of users |
Single |
Single |
Double |
Three color plates |
Customized according to customer needs |
Customized according to customer needs |
|
Air Shower Time |
0-99s adjustable |
|
Number of nozzles |
6 (unilateral) |
12 (both sides) |
12 (both sides) |
|
|
Nozzle Diameter |
|
Φ30mm |
|
|
|
Nozzle exit velocity |
|
20-28m/s |
|
|
|
Filter efficiency |
For particle size≥0.5μmDust should be99.99％(Sodium flame) |
|
|
Air shower area size (mm) W x D x H |
750x750x1950 |
750x750x1950 |
750x1600x1950 |
800x850x1950 |
|
Air shower area size (mm) |
1200x850x2050 |
1550x850x2050 |
1550x1700x2050 |
1200x1000x2050 |
|
Power supply |
AC 3N 380v 50Hz |
|
|
Maximum Power (W) |
550 |
1100 |
2200 |
|
|
Weight (KG) |
200 |
250 |
500 |
|
|
HEPA Filter Dimensions (mm) |
600x600x120x1A |
600x600x120x2A |
600x600x120x4A |
600x600x120x1A |
|
Note: FLS-series Air shower in addition to manually open the door to do the form, the form can also be made ​​automatically open the door, the user specified when ordering.
In addition to using air shower pass electrical control, can also be made ​​explosion-proof and other special forms, the user specified when ordering.
Airshower form can also be made ​​into three, so that the direction of 90 degrees out, the user specified when ordering |
Steel Air Shower
 |
FLS-1AType |
FLS-1C Type |
FLS-2C Type |
Cargo shower |
Channel Air Shower |
|
Number of users |
Single |
Single |
Double |
Customized according to customer needs |
|
Air Shower Time |
0-99sAdjustable |
|
Number of nozzles |
6个(Unilateral) |
12个(Both sides of the) |
24个(Both sides of the) |
|
Nozzle Diameter |
|
Φ30mm |
|
|
Nozzle exit velocity |
|
20-28m/s |
|
|
Filter efficiency |
For particle size≥0.5μmDust should be99.99％(Sodium flame) |
|
Air shower area size (mm) W x D x H |
800x900x1980 |
800x900x1980 |
800x1500x1980 |
|
Air shower area size (mm) |
1550x1000x2080 |
1550x1000x2080 |
1550x1600x2080 |
|
Power supply |
AC 3N 380v 50Hz |
|
Maximum Power (W) |
550 |
1100 |
2200 |
|
Weight (KG) |
200 |
250 |
500 |
|
HEPA Filter Dimensions (mm) |
600x484x120x1A |
600x484x120x2A |
600x600x120x4A |
|
Note: FLS-series Air shower in addition to manually open the door to do the form, the form can also be made ​​automatically open the door, protein powder the user specified when ordering.
In addition to using air shower pass electrical control, can also be made ​​explosion-proof and other special forms, the user specified when ordering.
Airshower form can also be made ​​into three, so that the direction of 90 degrees out, the user specified when ordering |
|
|
|
|
|
